Self Bunded Diesel Storage Tanks
South Africa

Reliable • Compliant • Plug-and-Play above-ground diesel storage for businesses nationwide.

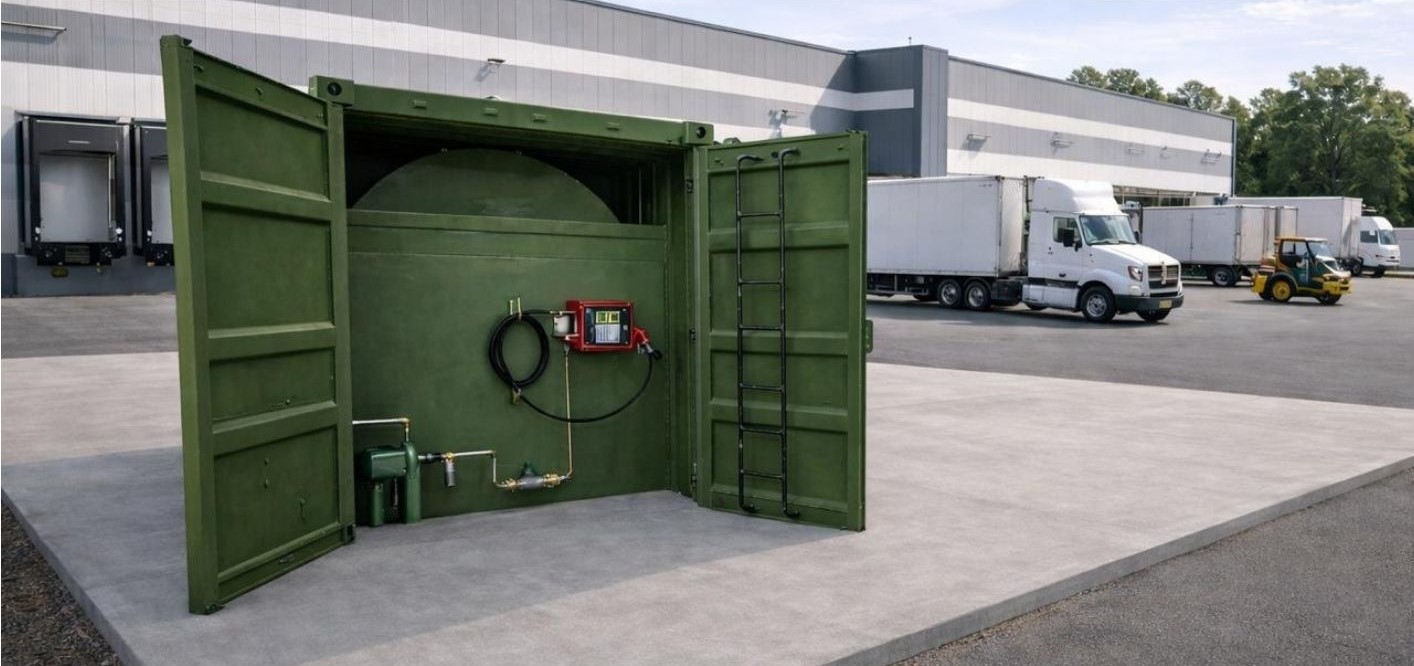

Self Bunded Diesel Tank
✔ Compliant
✔ Double-Walled Self Bunded Design
✔ Plug-and-Play Deployment
✔ Pressure Tested Tanks

WHY SELF BUNDED TANKS

Diesel storage is mission-critical for operational continuity.
FUEL HUB tanks deliver safe, compliant, efficient solutions.

✔
Eliminates reliance on daily fuel deliveries
✔
Reduces fuel theft risk with secure design
✔
Improves operational efficiency & planning
✔
Enables cost-saving bulk fuel purchasing

FACTORY SERIES

Reliable • Compliant • Cost Effective

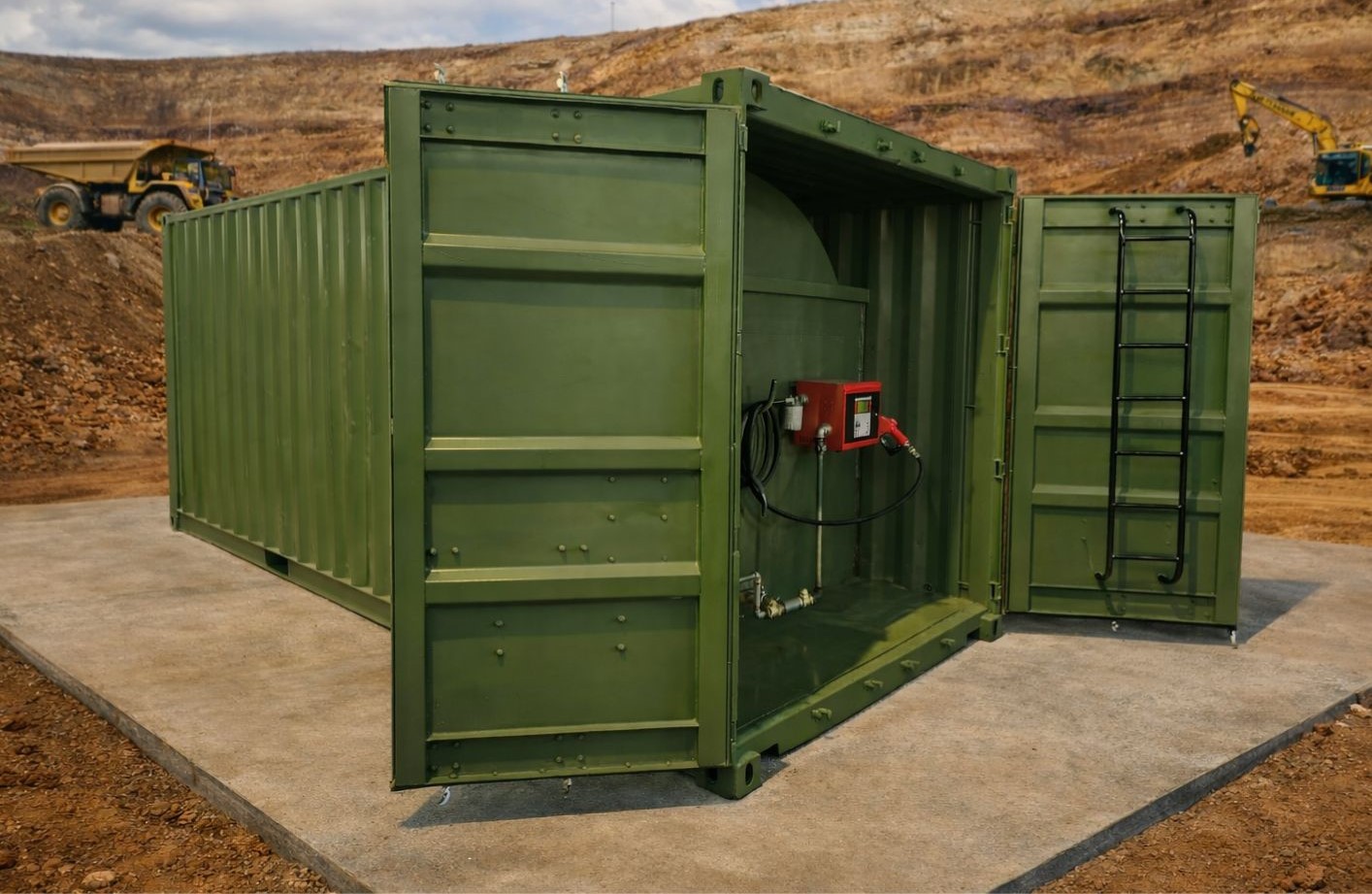

Factory Series

Designed for:

  • • Commercial farming
  • • Rural fuel storage
  • • Construction sites
  • • Small depots
  • • Budget-conscious projects

Core Features:

  • • 4mm mild steel with 4mm flat ends - primary tank
  • • Double wall and self bundled – ensuring successful containment
  • • 3mm steel bund wall lining
  • • 650mm access manhole
  • • Standard 3" breather & filler, 3" couplings fitted
  • • Lockable container enclosure
  • • Pressure tested prior to dispatch
  • • Engineer drawings available
  • • Access ladder and manhole cover for visual inspection

PREMIUM SERIES

Reinforced • High Performance • Plug and Play

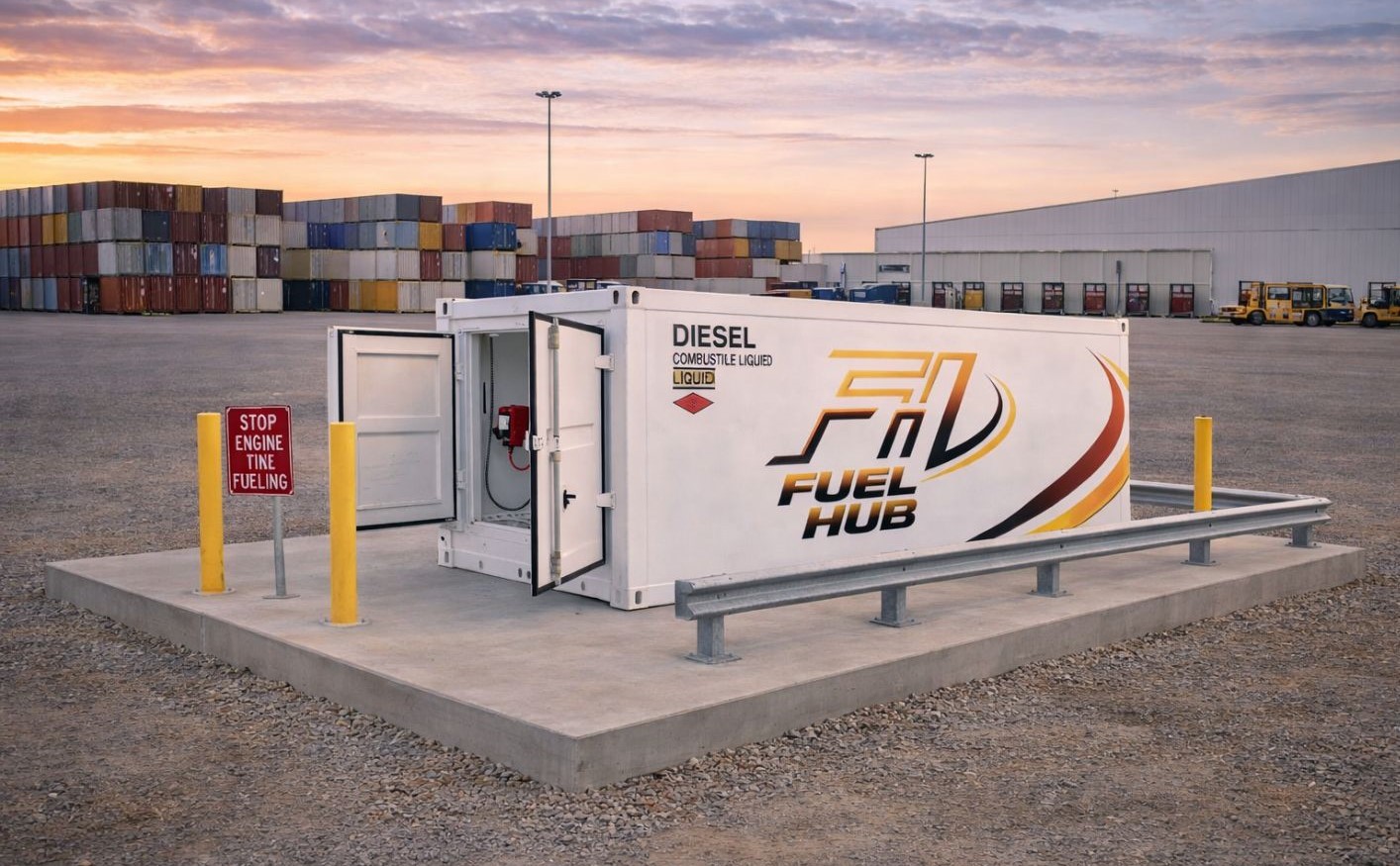

Premium Series

Designed for:

  • • Mining operations
  • • Industrial depots
  • • Contractor controlled environments
  • • High volume dispensing sites

Enhanced Structural Features:

  • • Reinforced cladded container structure
  • • Structural steel support enhancements
  • • Enhanced corrosion resistant coating system
  • • Heavy duty bund lining
  • • Engineered load-bearing frame design
5 YEAR STRUCTURAL WARRANTY
6 MONTH MECHANICAL WARRANTY
12 MONTH PAINT WARRANTY

Our Tank Range

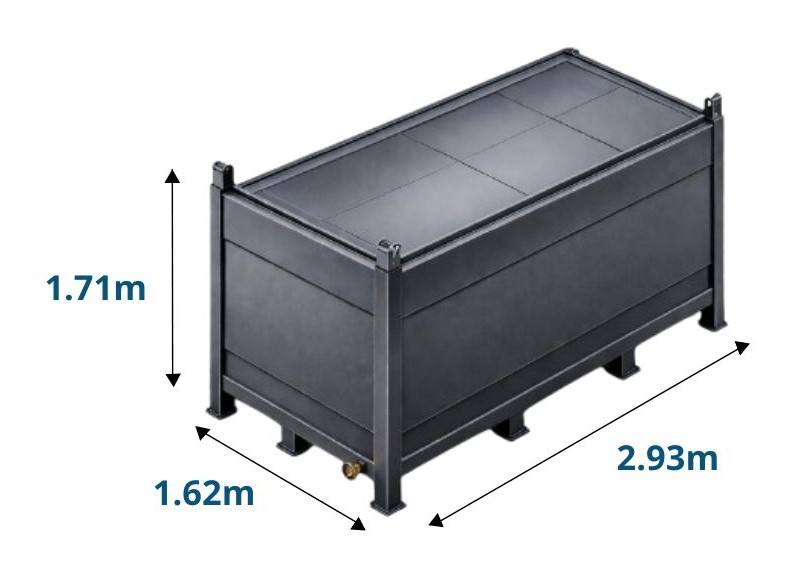

5 000L Tank

5 000L Container Tank

Full Capacity5000 L
Safe Fill Level4500 L
Weight in Total2000 kg
Length2.93 m
Width1.62 m
Height1.71 m

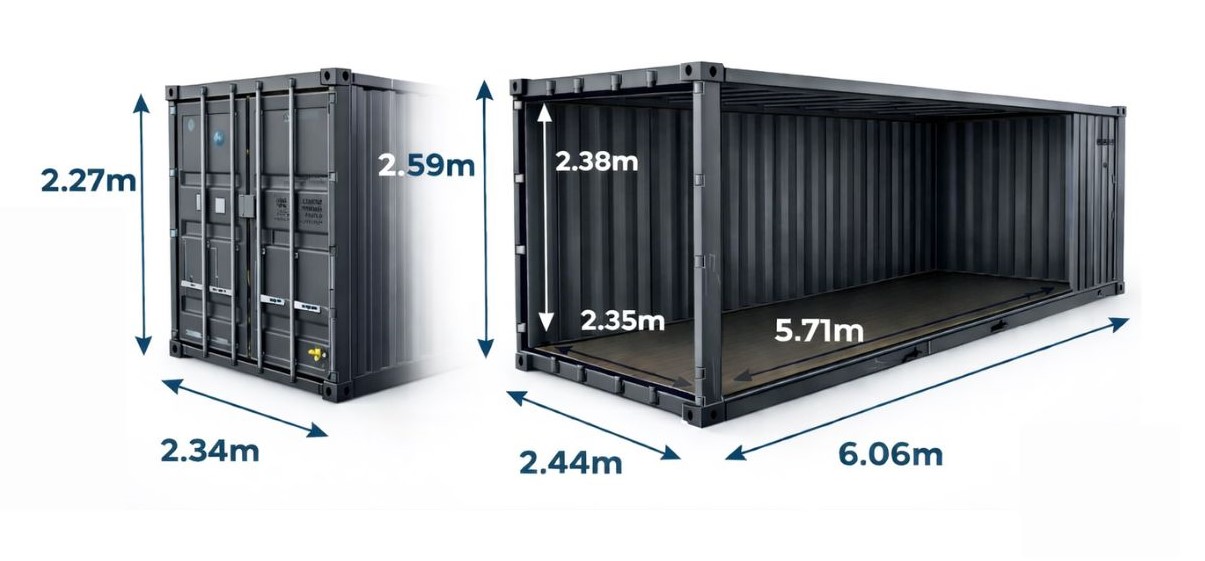

20 000L Tank

20 000L Container Tank

Full Capacity20500 L
Safe Fill Level19500 L
Weight in Total4000 kg
Length6 m
Width2.44 m
Height2.59 m

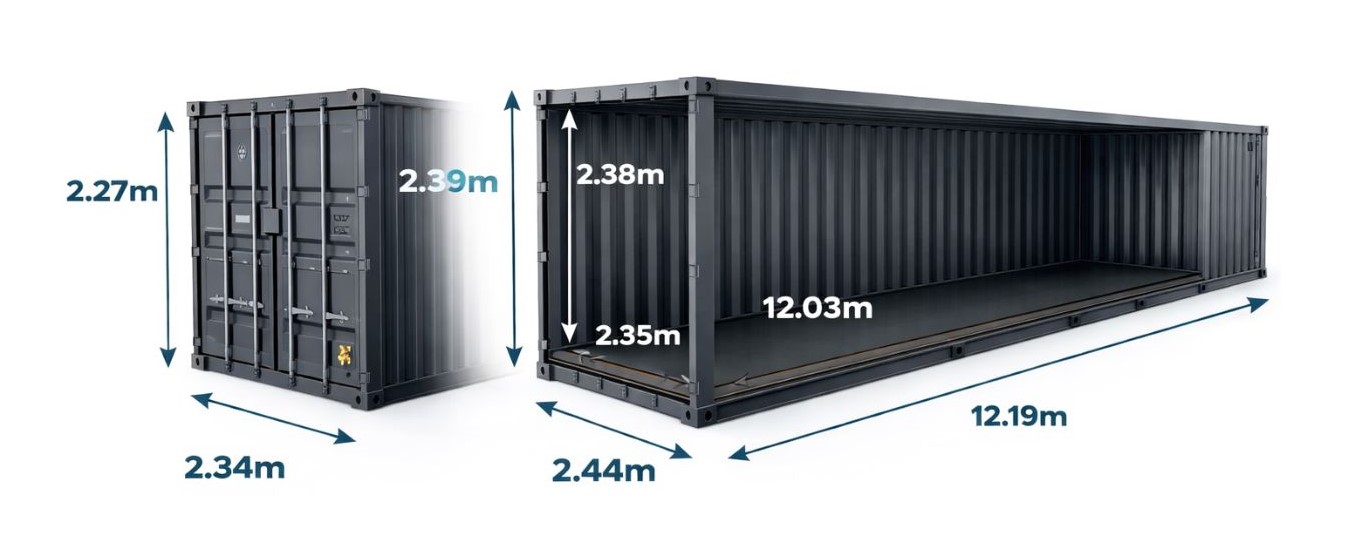

40 000L Tank

40 000L Container Tank

Full Capacity40500 L
Safe Fill Level39500 L
Weight in Total6000 kg
Length12 m
Width2.44 m
Height2.59 m

PLUG AND PLAY DEPLOYMENT

Factory-Built. Pre-Engineered. Rapidly Commissioned.

Fuel Hub self-bunded container tanks are delivered as fully factory-assembled, structurally integrated fuel storage systems designed for efficient site deployment.

Each unit is manufactured, assembled and pressure-tested at our facility prior to dispatch — eliminating on-site fabrication and reducing installation complexity.

What This Means for Your Operation

  • • Fully welded and pressure tested before delivery
  • • Integrated tank and container enclosure structure
  • • Pre-installed dispensing configurations (as specified)
  • • Pre-prepared electrical connection points
  • • Engineered access and coupling systems
  • • Ready for immediate fuel commissioning

Deployment Advantages

  • • Minimal civil works required
  • • Reduced installation time & labour
  • • Faster operational readiness
  • • Reduced downtime during expansion
  • • Ideal for remote & high-demand environments
  • • Modular & fully relocatable design

SIDE BY SIDE COMPARISON

FEATURE FACTORY SERIES PREMIUM SERIES
Tank Thickness 4mm Mild Steel Structure 4mm Mild Steel Structure, including cladding
Bunded Containment Yes Yes
Dispensing (80L/min) Prowalco Newly Refurbished Jerrycan
Dispensing (550L/min) Optional Optional
Digital Fuel Management Digi247 Std FMS Digi247 Full FMS
Solar Integration Optional 5kW Optional 8kW

COMPLIANCE AND ENGINEERING STANDARDS

Fuel Hub storage systems are engineered in accordance with internationally recognised fuel storage standards.

SANS 10131

Petroleum Storage Installations – South Africa

API 650

Welded Steel Tanks for Oil Storage

UL142

Steel Above Ground Tanks for Flammable Liquids

AS1657

Tank Access Platforms and Ladders

AS1940

Storage and Handling of Flammable Liquids

AS1692

Steel Tanks for Combustible Liquids

FUEL MANAGEMENT SYSTEM

STD FMS

  1. Digit247 FMS with real-time monitoring and access
  2. Overfill protection linked to bulk pump
  3. Automatic Tank Gauging linked to supplier network to ensure deliveries before they are needed

STD AND TAGGING

  1. Digit247 FMS with real-time monitoring and access
  2. Overfill protection linked to bulk pump
  3. Automatic Tank Gauging linked to supplier network...
  4. Tagging and security cameras to prevent fuel theft and tampering

FULL FMS

  1. Digit247 FMS with real-time monitoring and access
  2. Overfill protection linked to bulk pump
  3. Automatic Tank Gauging linked to supplier network...
  4. Tagging and security cameras to prevent fuel theft and tampering
  5. Leak detection and product monitoring
  6. System compatible with most client requirements

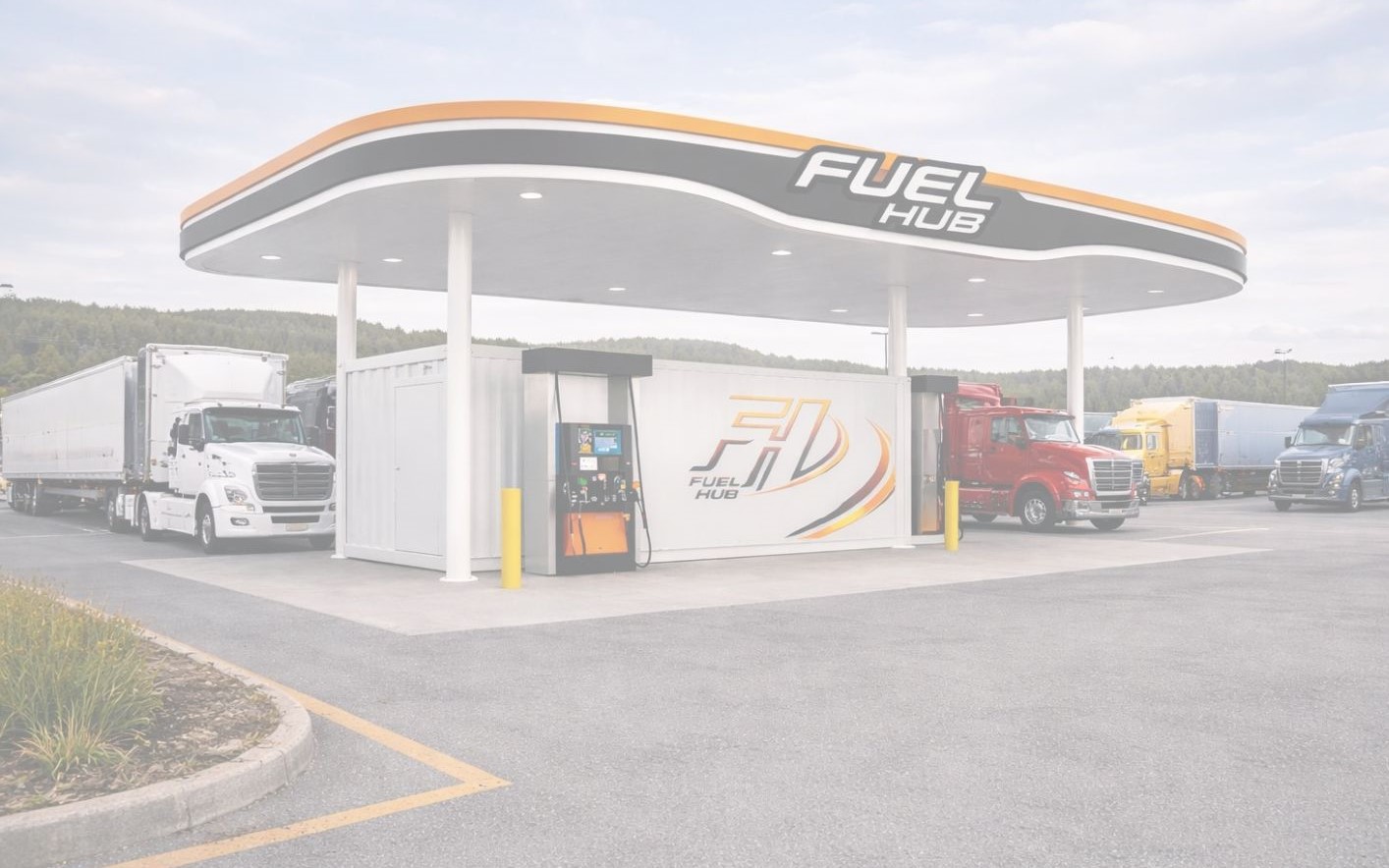

DELIVERY AND INSTALLATION

FUEL HUB provides FAST Deployment across South Africa

TYPICAL LEAD TIME: 3 - 4 Weeks
